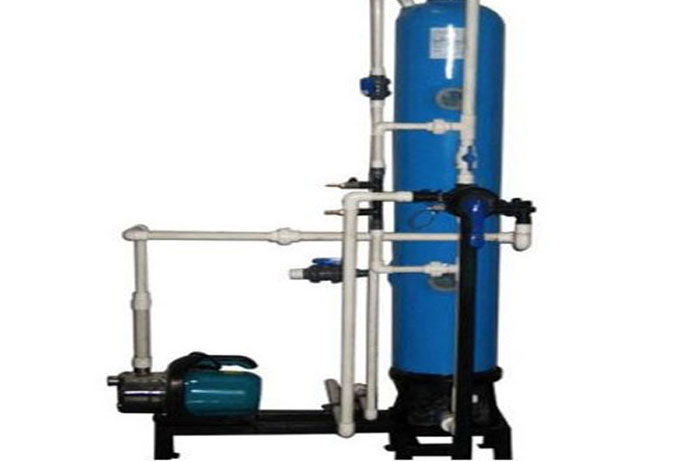

Mixed Bed Demineralisation Plant
Mixed Bed Demineralizer Plant in Pune | Mumbai
We are giving exceedingly productive scope of Mixed Bed Demineralisation Plant that is produced using high review crude materials and most recent innovation. The blended bed plants are utilized for fine cleaning in cutting edge water establishments, for example, therapeutic and electronic enterprises, clinics, control stations, and for generation of direct measure of demineralized water from waterworks.
By treating demineralized water with low carbonic acid content, a conductivity of less than 0.1 µS/cm at 10°C can be achieved. In mixed-bed deionizers, the cation exchange and anion-exchange resins are intimately mixed and contained in a single pressure vessel. By treating demineralized water with low carbonic corrosive substance, a conductivity of under 0.1 µS/cm at 10°C can be accomplished.
In blended bed deionizers, the cation trade and anion-trade saps are personally blended and contained in a solitary weight vessel. The careful blend of cation-exchangers and anion-exchangers in a solitary section makes a blended bed deionizer proportional to a protracted arrangement of two-bed plants. Coming about, the water quality got from a blended bed deionizer is obviously higher than what is created by a two-bed plant.
| Material of Construction: | FRP |
| Capacity: | Up to 1000 m3/hr |
| Installation: | Yes |
Features
- Extreme in development
- Longer administration life
- Roughly built
- Improved execution
- Bolster structure and troughs manufactured from stainless steel for dependable toughness
- Adaptable outline perfect for retrofitting
- Expanded solids evacuation
- Process steadiness
- Predictable operation
Applications
- Boilers encourage water
- Materials plants
- Pharmaceuticals
- Chemicals businesses
- Distilleries
- Car industry
Mixed Bed Demineralizer: Know the importance and significance
The corrosion problems and decrease performance is due to fouled heat transfer surfaces which is generated by Demolished impurities in power plant fluid systems. Demineralization of the water is one of the most practical and anxiousness available to remove these dissolved impurities.
The Mixed Bed Demineralizer Plant in Pune and Mixed Bed Demineralizer plant in Mumbai has both cation and anion resin mixed together in a single vessel. As water moves through the resin bed, the ion exchange procedure is repeated many times, "polishing" water to a very high purity. During regeneration, the resin is divided into a distinct cation and anion fractions. The resin is divided by backwashing, with the lighter anion resin settling on top of the cation resin of MB Plant in Mumbai.
Regenerant acid is presented through the end distributor, and caustic is presented through distributors above the resin bed. Following the regenerant introduction and displacement rinse of Mixed Bed system in Pune and Mixed Bed system in Mumbai, air and water are used to mix the resins. Then the resins are rinsed, and lightweight ready for service.
Counterflow and MB Unit in Pune and Mixed Bed Demineralizer Plant manufacturer in Mumbai produce purer water than conventional cation-anion demineralizers by Mixed Bed system in Pune and MB Plant in Pune, but require more sophisticated equipment and have a higher initial cost. The more complicated regeneration sequences require closer operator attention than standard systems. For a mixed bed unit, this is especially true.
An overview about Demineralizers
A Mixed Bed Demineralizer Plant in Pune and Mixed Bed Demineralizer Plant manufacturer in Pune generally use a circular container with connection at the top for water inlet and resin addition, and connection at the end for water store. The resin can usually be modified through an association at the end of the container. The resin beads are kept in the demineralizer by higher and reduced preservation components of Mixed Bed system in Pune and Mixed Bed system in Mumbai, which are strainers with a capable size smaller than the resin beads. At a set flow rate through the resin beads the water to be purified enters the top and moves down, where the flow path causes a physical filter impact as well as a chemical ion exchange.
Single-Bed Demineralizers
There is either cation or anion resin beads in a single-bed demineralizer. In series the first is a cation bed and the second is an anion bed there are two, single-bed ion exchangers. Impurities in plant water are substituted for hydrogen ions in the cation bed and hydroxyl ions in the anion bed. The hydrogen ions and the hydroxyl ions then combine to form pure water.
Mixed-Bed Demineralizer
A Mixed Bed Demineralizer Plant in Pune and Mixed Bed Demineralizer Plant in Mumbai is a demineralizer in which the cation and anion resin beads are mixed together. In impact, MB Plant in Mumbai is equivalent to a number of two-step demineralizers in sequence. In a Mixed Bed system in Mumbai as well as MB Plant in Pune, more impurities are modified by hydrogen and hydroxyl ions, and water that is produced is extremely genuine. The conductivity of this water can often be less than 0.06 micromhos per centimetre.
The Mixed Bed Demineralizer Plant manufacturer in Pune and Mixed Bed Demineralizer Plant manufacturer in Mumbai is used to acquire high-purity demineralized water. The MB Unit in Pune and MB Unit in Mumbai are often used as post-treatment after reverse osmosis systems, water softening, etc. to acquire high purity water that is required in certain applications. The Mixed Bed Demineralizer Plant in Mumbai and Mixed Bed Demineralizer Plant manufacturer in Mumbai are composed of a column where powerful cationic resin and powerful anionic resin are mixed evenly, the manifold of valves, regeneration system and electrical panel with PLC; constructed with resins and components of top quality and manufactured under the concepts of ease of delivery, installation and commissioning.
All MB Unit in Pune and MB Unit in Mumbai will eventually be exhausted from use. To regenerate the resin and increase the demineralizer's performance, the MB Plant in Pune and MB Plant in Mumbai are regenerated. The regeneration procedure by Mixed Bed Demineralizer Plant manufacturer in Pune and MB Unit in Mumbai are slightly different for a mixed-bed demineralizer compared to the single-bed demineralizer.
